How To Disassemble Xbox One Controller

Users consider The Xbox One control one of the most significant controls for video games; however, sometimes, they break up and must be repaired. While you can remove an Xbox One controller without difficulty, a few potential snags exist, and several specialized tools you may not be lying around are also required. The feedback engines, buttons, and thumbsticks are then tricky. After knowing this, you must take care of your Xbox One controller. You must know how to remove, clean, repair, and reassemble the Xbox One controller. So, in this article, we will see how to disassemble Xbox One controller. And click here if you want to know the steps to install Xbox games faster.

To access the inner workings of the controller, you need to use a Torx 8 screwdriver to remove the screws on the back. There are a total of 5 screws that need to be unscrewed. Two screws are located at the bottom and top of the sides, beneath the plastic panels that were just removed. The remaining screw is located in the center of the battery compartment.

If the controller is not working correctly and you already updated your firmware and passed a few basic troubleshoots like testing the batteries, you must disassemble the controller. Here are some corrections for which you must take your Xbox One controller apart, providing suggestions about what to do after opening the control.

Learn more about Xbox Controller here!

Table of Contents

General cleaning

It is highly suggested that you maintain your Xbox controller clean, regardless of the situation. Cleaning is vital, from hygiene routines to infection management to Xbox 1 controller buttons. For dirt cleaning, Microsoft advises isopropyl alcohol; to clean areas with cotton swabs. The plastic components will be most cleaned. Use this to capture any debris that falls out of reach if you have a short vacuum cleaner suitable for electronics.

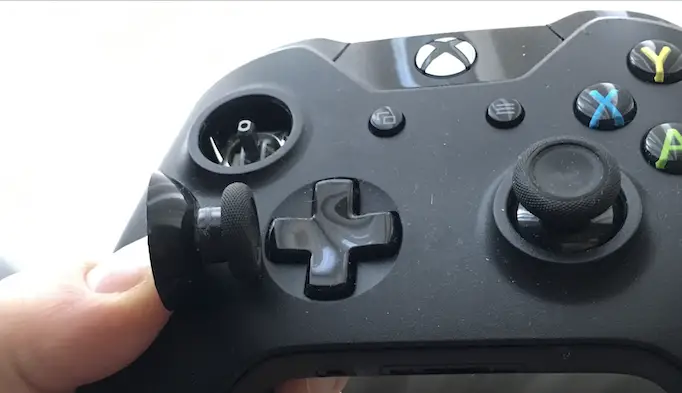

Faulty Thumbstick

You can make different repairs once you have disassembled the Xbox One controller. You can check discontinuous buttons and thumbsticks repaired (typically fitted with further cleaning). The Xbox One controller is likely to release thumbsticks. In many circumstances, a small metal rod – possibly from a thump – can be struck into the thumbstick and pushed in on the analog controls placed on the circuit board. In most cases, You can find the solution.

Customizing Xbox Controller

Teardown provides an excellent opportunity to customize your Xbox One controller (new LEDs, etc.). But a paint and adhesion promoter can make more striking adaptations to the appearance of your controller.

Also, there are many options for upgrading your comptroller to give it the required steroids.

Take control of your gaming experience by calibrating your Xbox controller to your preferences, ensuring a seamless and immersive gameplay.

How To Disassemble Xbox One Controller?

Ensure that your Xbox One controller is shut off before disassembling the controller. Place it with simple tooling on a table or comparable hard surface.

Tools required

First, let us see what tools you need to learn to disassemble the Xbox One controller. You can find a clean and clear workstation that is illuminated adequately before disassembling your Xbox One controller.

If you do not already have them, you must obtain the following tools: an At-8 Torx safety tool, a Torx bit driver, and a prying tool. You can use a Torx bit in a driver or a particular Torx driver, but it must be a T-8 safe Torx. You can make the difference between a standard Torx and a safety Torx by the little hole in the tip of a safety Torx. A normal T-8 Torx will not fit into the controller screws of Xbox One without this little hole.

Outer Cover Dismember

The next step in disassembling the Xbox One controller is to remove the outer cover.

Remove and lay aside the door of the battery cabinet.
Save them for later; remove the batteries. Draw the plastic panels on the back of the control “handles,” where the controller sits in your hand, using the plectrum or spudger.

It can take a while, so take your time to unclip the electrum slowly along each edge. Unseal the five Torx screws with the controller facing down. There are two on the right, two on the left, and one at the battery compartment underneath the label. Put the torches carefully aside later on.

Tackling The Inners!

Now remove the back panel. You can now lift the primary controller. Notice how this plastic secondary case contains two PCBs (printed circuit boards). If you plan to adapt, you can now replace thumbsticks, D-pads, and other buttons.

Further dismantling needs some knowledge about electronics, so don’t proceed if you don’t know about PCBs and electrical components. The motors, triggers, and several more screws are now accessible and can be left alone until you repair specific details on the circuit board.

What Next?

Now you are on the surface with your Xbox One controller in parts. But what are you next capable of doing? Here you can continue in a few ways. We suggest that you maintain your controller clean, regardless of the situation. Cleaning is vital, from hygiene routines to infection management to Xbox 1 controller buttons.

You can make different repairs once the controller has opened Xbox One. You can check discontinuous controls and thumbsticks repaired (typically fitted with further cleaning). Be mindful that electrical components are exposed to another teardown. As such, you must address your controller’s danger of static electrical damage.

So, by now, you would have learned how to disassemble Xbox One controller.

How To Reassemble Xbox Controller?

Now that you have learned how to disassemble Xbox One controller, we will see how to reassemble it now.

Follow the steps above if the Xbox One Controller is okay and ready to reassemble the device. Whether clean or it no longer needs to be fixed, after your Xbox One controller has been reassembled, it should again work as usual. If not, consider purchasing an alternate controller or other troubleshooting methods.

FAQs

How do you take apart an Xbox One controller?

To take apart the Xbox One controller, you need to put a flat-shaped screwdriver into the panel between the two buttons at the top center of the controller. Next, pull in the plastic to remove it using your fingers; give it more force if the bumper button covers and top covers are stiff.

What tool do you need to take apart the Xbox One controller?

The most recommended tools to take apart the Xbox One controller are the T8 Security Torx Screwdriver and T6 Torx Screwdriver. These tools require minor efforts to swap out any controller shells or bumpers quickly.

How To Clean Xbox Controller Stick Drift Without Opening Controller (2024)?

To clean the fixed Xbox controller stick Drift without opening the controller, you can use compressed air vacuum machines to remove all the dust and specks of dirt from the joystick. Next, use a cotton swab soaked in rubbing alcohol to clean it more neatly.

How do you fix a drift stick?

To fix a drift stick of the Xbox controller, press both analog sticks of the controller for 10 seconds continuously. Next, put the joysticks in the upward direction and blow air in the opening created while doing this. Then start rotating the joysticks for about 10 seconds in a clockwise direction and do the same in the anticlockwise order.

Conclusion

The idea of tearing down your beloved Xbox One controller can be terrifying and revolting for many. Follow these simple instructions, and you can easily disassemble the whole unit quickly and save yourself some money by performing DIY repairs or maintenance jobs. You mustn’t go this route if you doubt whether you can perform this task. Now that you’ve assembled your xbox controller, click here to learn how to reset your Xbox One X instantly.

I hope this article on disassembling Xbox One controller was helpful to you. Let us know in the comments section below if you have further questions. We would be glad to answer them for you.
